Cat8 SFTP 22AWG LAN Cable

LinkTop Cat8 SFTP 22awg ethernet lan cable high quality sstp/sftp shield indoor outdoor Cat 8 cable 1000ft rolls 500m 1000mhz

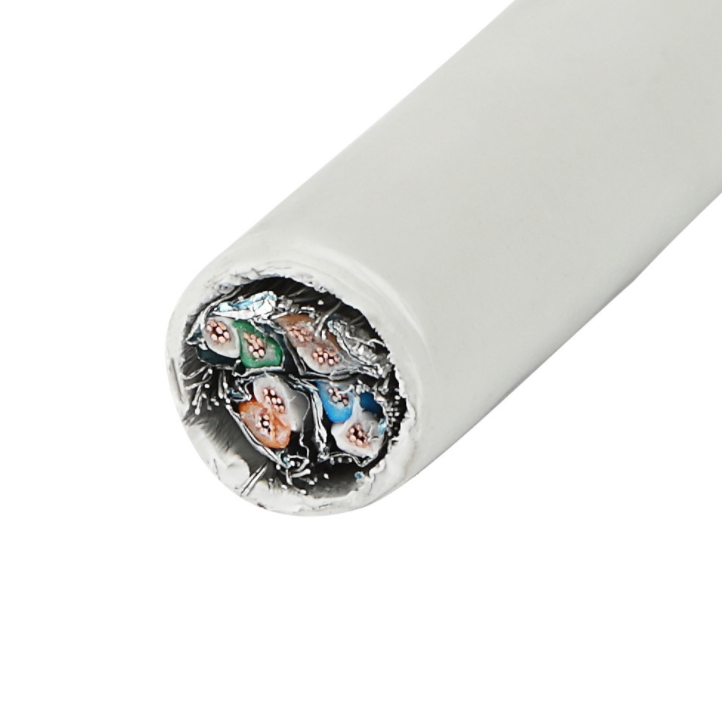

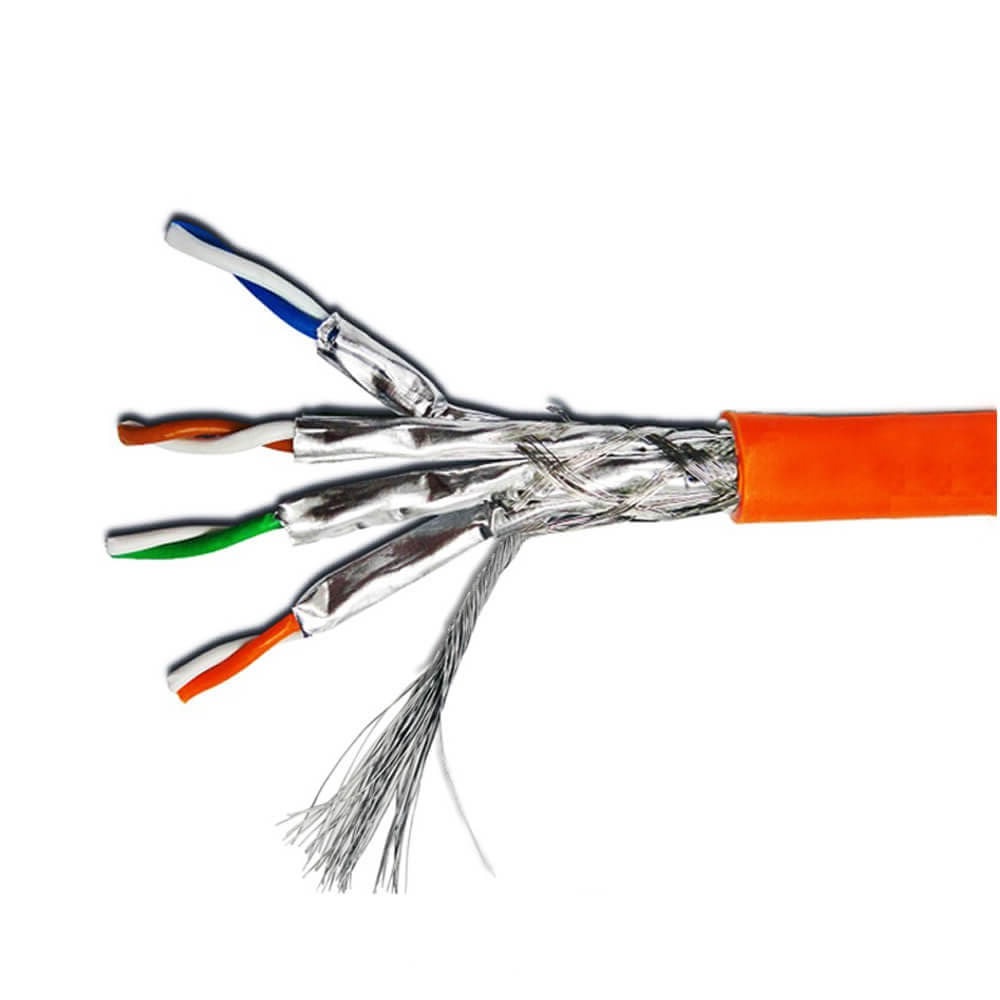

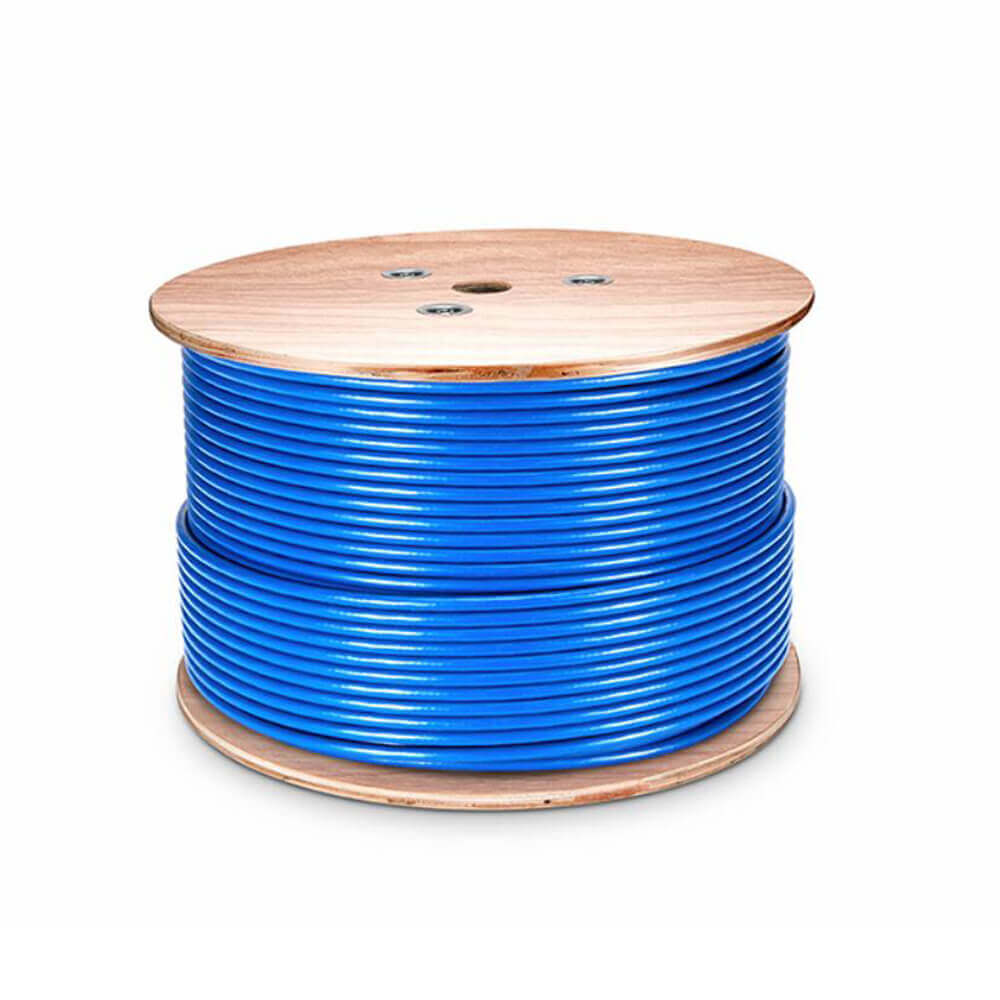

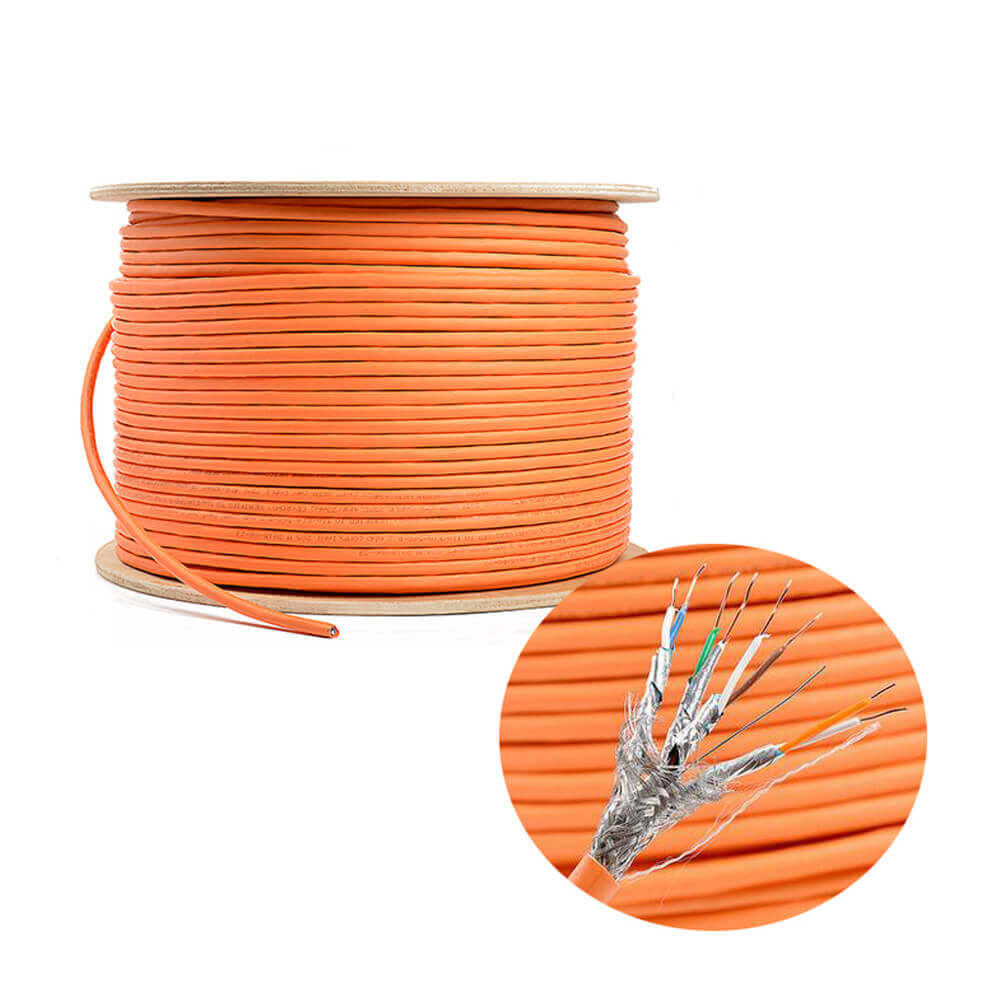

LinkTop Cat 8 S/FTP Shielded and Foiled Ethernet installation cable, is ideal for a larger data driven network installation, high performance data center. This Cat8 cable delivering 40G data networking over distances up to 30 meters, which is four times faster than most Cat6A data centfers used today. Composed of four individually shielded pairs of 22 gauge solid bare copper conductors, with an overall tinned copper braid shield, in order to repel electromagnetic interference (EMI) in electrically noisy environments, the CAT8 bulk Ethernet cable has an overall LSZH jacket and sequential foot or meter markings on the jacket so you always know how much it left. Our cable is supplied on a 500ft or 1000ft wooden spool package

Specifications:

* Conductor : 22AWG (1/0.64mm), Solid Oxygen-free Copper

* Insulation: Foam skin PE

* Shielding: Individual pair shielding by aluminum foil

* Braiding: 16/6/0.12 tinned copper

* Outer Diameter: 8.4 ± 0.2mm

* Jacket Options: PVC, LSZH, CM, CMR(Riser), CMP(Plenum), PE (Outdoor), * Color: Grey/White/Blue/Black or Customized

- Tested by Fluke and Network analyser

- ROHS, REACH Compliance

- CPR Eca, Dca Certificated

Standard Compliance:

* ISO/IEC 11801-1

* EN 50173-1

* IEC 61156-9

* 40GBase-T Ethernet

* HDBase-T@4K 60MHz

* IEEE 802.3 af (Type 1 PoE)

* IEEE 802.3 at (Type 2 PoE)

* IEEE 802.3 bt (Type 3 PoE)

* IEEE 802.3 bt (Type 4 PoE)
