UTP CAT6A LAN Cable

LinkTop UTP cable 4 pair Cat6A ethernet network Lan cable 1000ft 305m UTP cable roll

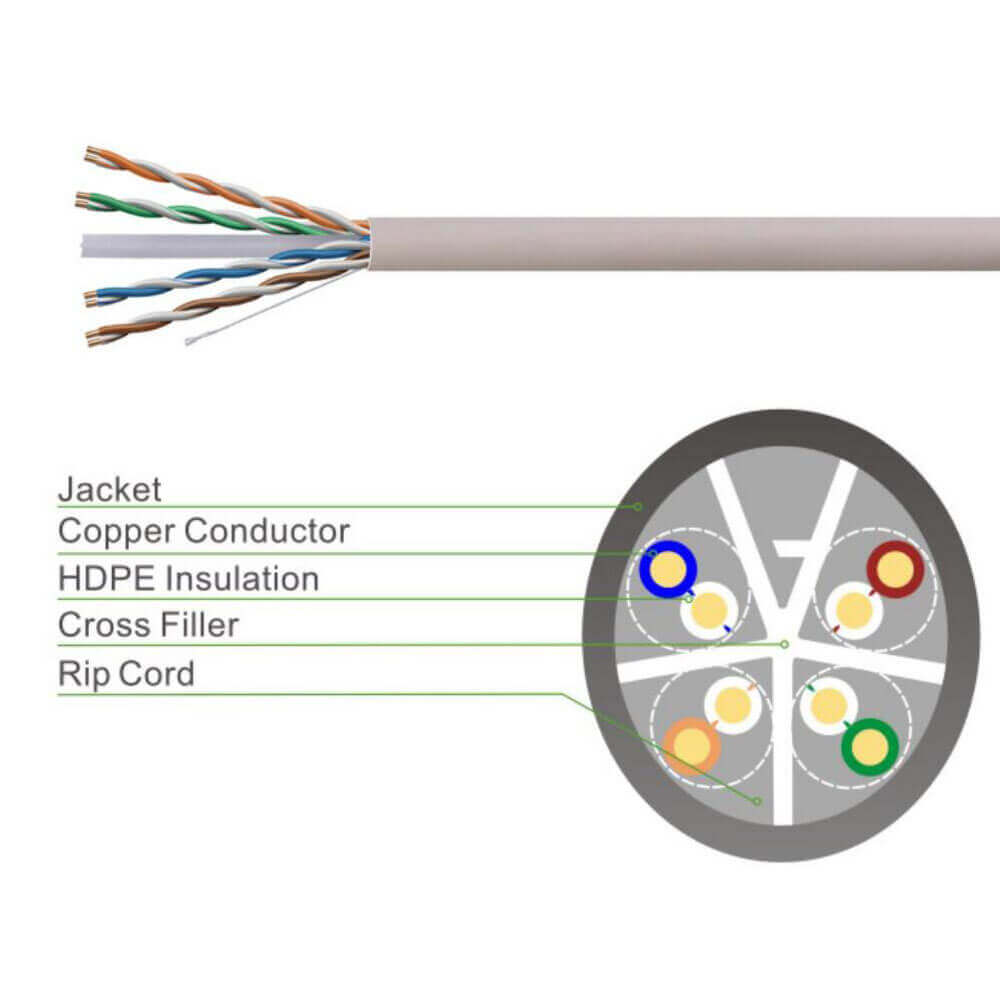

LinkTop CAT6A U/UTP Unshielded Ethernet installation cable, is ideal for for high performance data communications for voice, data, video and security networking capabilities. This cable enables 10-Gigabit data transmission and allows for faster bandwidth up to 500MHz Composed of four unshielded twisted pairs of 23 gauge solid bare copper conductors, with a high density polyethylene (HDPE) insulation, the CAT6A bulk Ethernet cable has an overall LSZH jacket or a CMR-UL PVC jacket, and sequential foot or meter markings on the jacket so you always know how much it left.

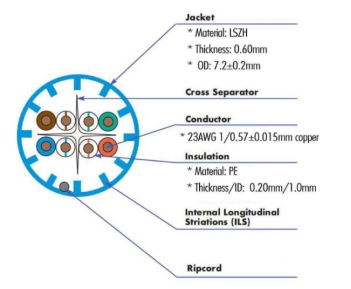

Specifications:

* Conductor : 23AWG (1/0.57mm), Solid Oxygen-free Copper

* Insulation: HDPE

* Internal Longitudinal Striations (ILS)

* Shielding: Unshielded

* Braiding: none

* Outer Diameter: 7.2 ± 0.2mm

* Jacket Options: PVC, LSZH, CM, CMR(Riser), CMP(Plenum), PE (Outdoor),

* Color: Grey/White/Blue/Black or Customized

* Tested by Fluke and Network analyser

* ROHS, REACH Compliance

* CPR Eca, Dca Certificated

Standard Compliance：

* IEC/ISO 11801

* ANSI/TIA568C.2

* ISO/IEC 61156-5

* Meets or exceeds ANSI/TIA-568-C.2 Category 6 and ISO11801 2nd Edition Class EA channel standards

* Meets or exceeds ANSI/TIA-568-C.2 and IEC 61156-5 Category 6A component standards.

* Meets IEEE802.3af and IEEE 802.3at for PoE applications

* Third party tested to comply with ANSI/TIA/EIA- 568-C.2

* 155Mbps ATM

* 10/100/1000/10000 Base-T

Product Description
