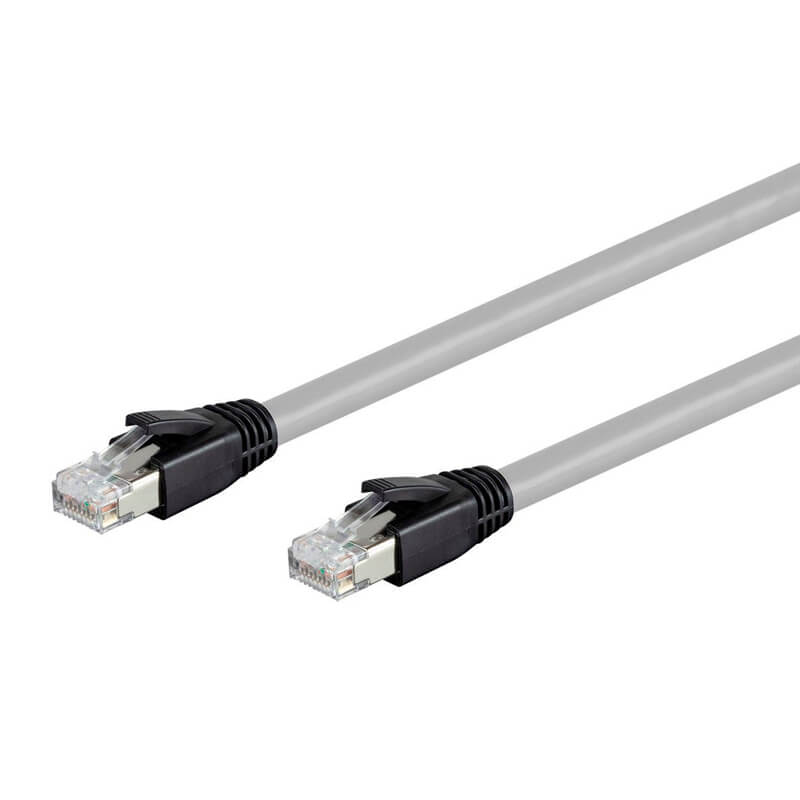

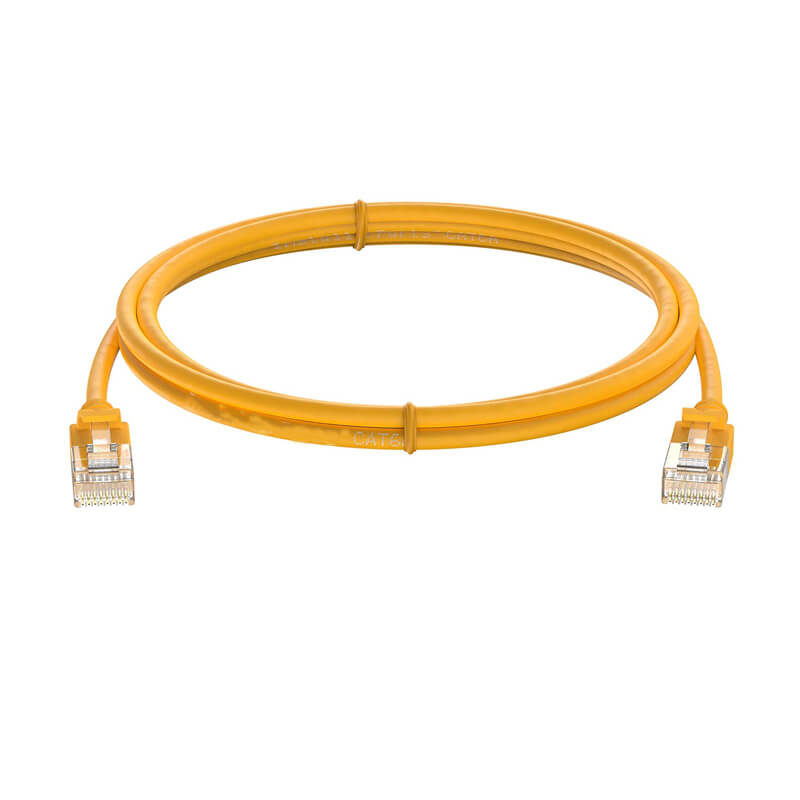

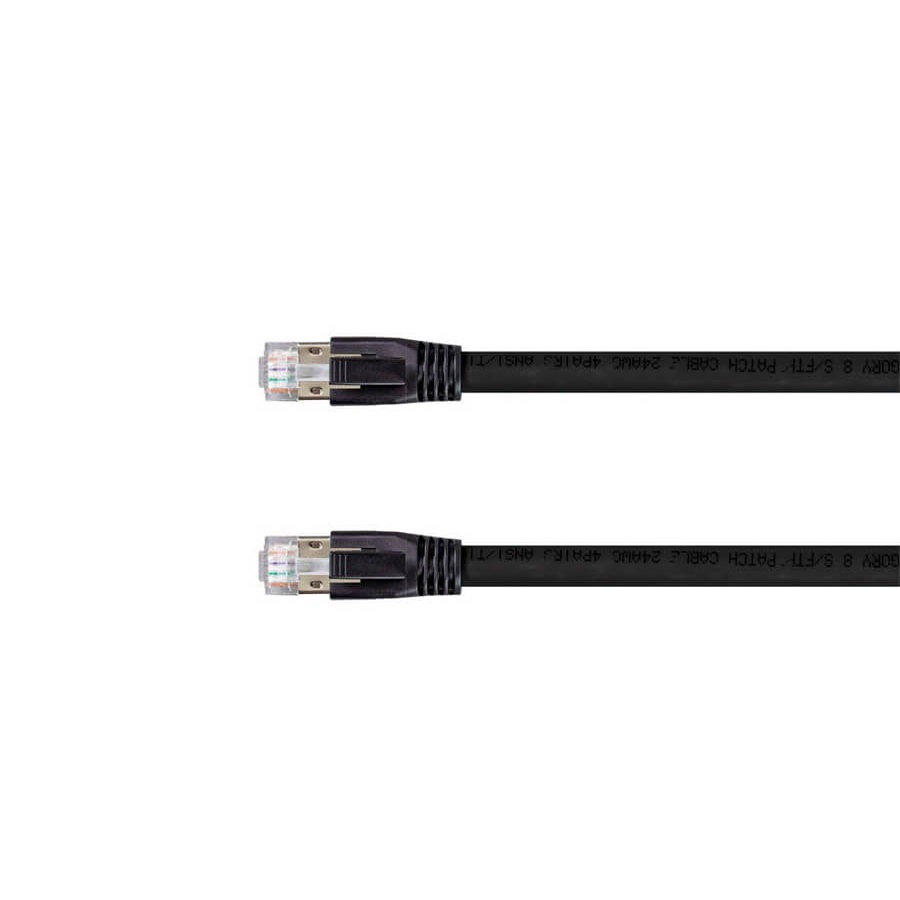

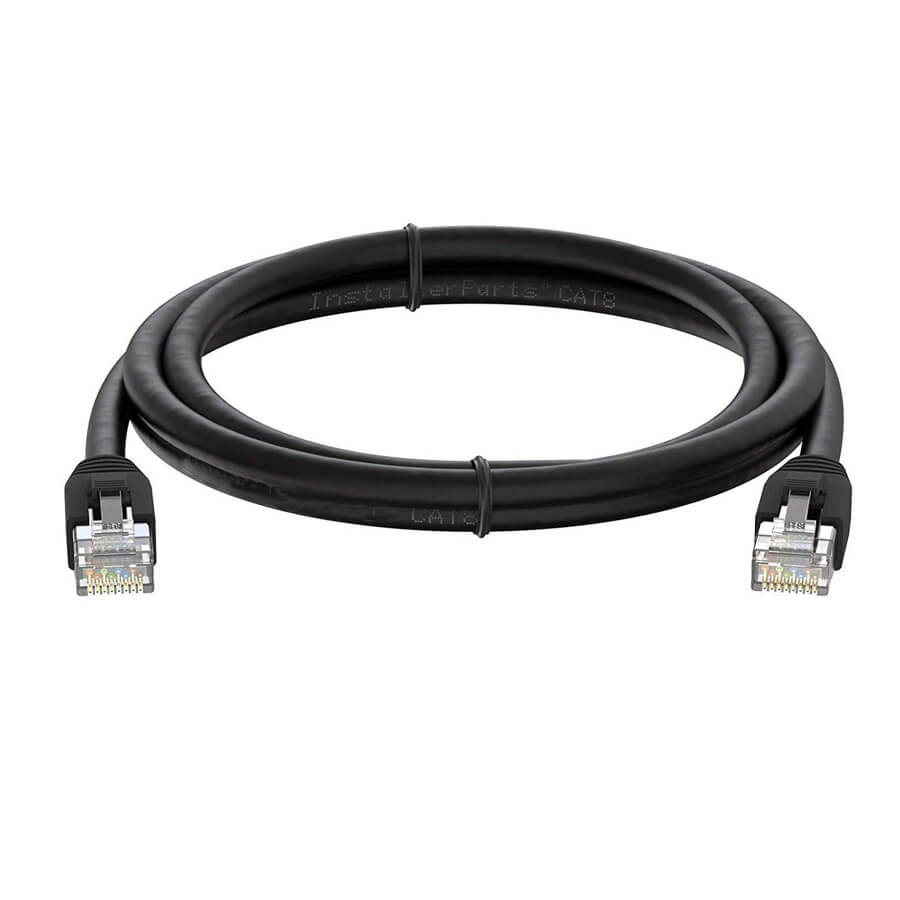

Cat.8 SSTP 24AWG Patch Cord

LinkTop Cat8 SFTP SSTP ethernet patch cord cable RJ45 shield Cat8 network cable 24AWG

LinkTop Cat8 S/FTP Double Fully Shielded Patch Cable is an ideal solution for making a network connecting in a noisy, EMI/RFI environment. Build your home or office network with 10GBase-T Gigabit Ethernet. The S/FTP Double Fully shielding provides protection from EMI/RFI noise and electromagnetic interference makes a well Attenuation and Crosstalk performance. This cable meets or exceeds Category 8 performance in compliance with the TIA/EIA-568-C.2 specifications. The connectors with gold-plated contacts, molded strain-relief boots, and snagless molds resist corrosion, provide durability, and ensure a secure connection. Bare copper conductors enhance cable performance and comply with specifications for communications cables. Flexible and durable Cat8 cable with high bandwidth of up to 2000MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance, and online high-definition video streaming.

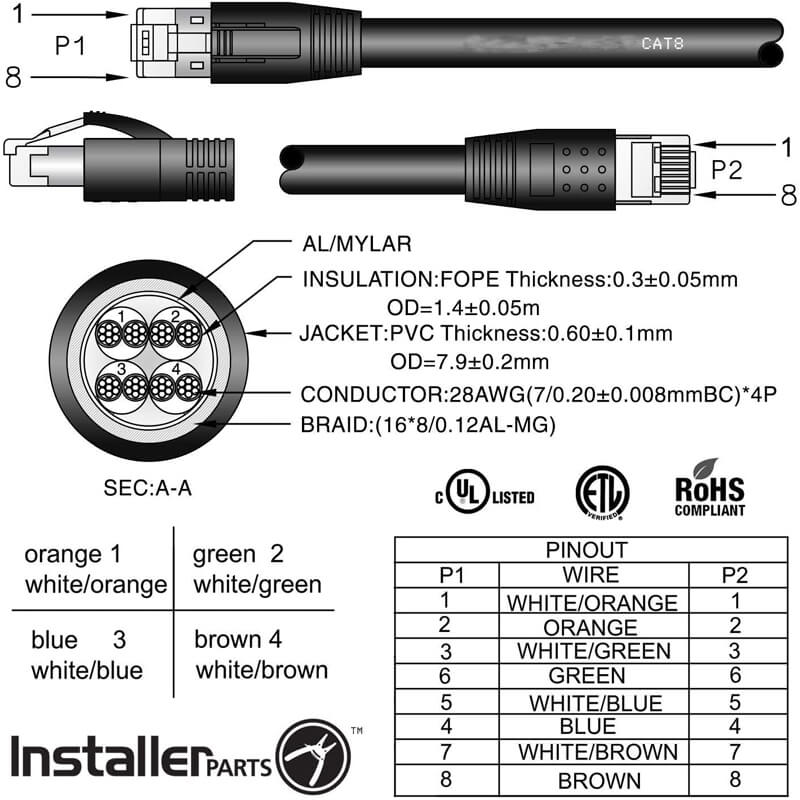

Specifications:

* Conductor : Bare copper

* Wire Gague: 24AWG 7/0.20±0.015mm

* Insulation: Foam PE

* Insulation color: Blue/White,Blue; Orange/White, Orange; Green/White,Green; Brown/White,Brown

* Individually shield: Aluminum foil

* Braiding: Braid 16/8/0.12 Aluminum Magnesium

* Drain wire: 24AWG 7/0.20 ±0.015mm

* Jacket: PVC

* Outer diameter: 8.0±0.2mm

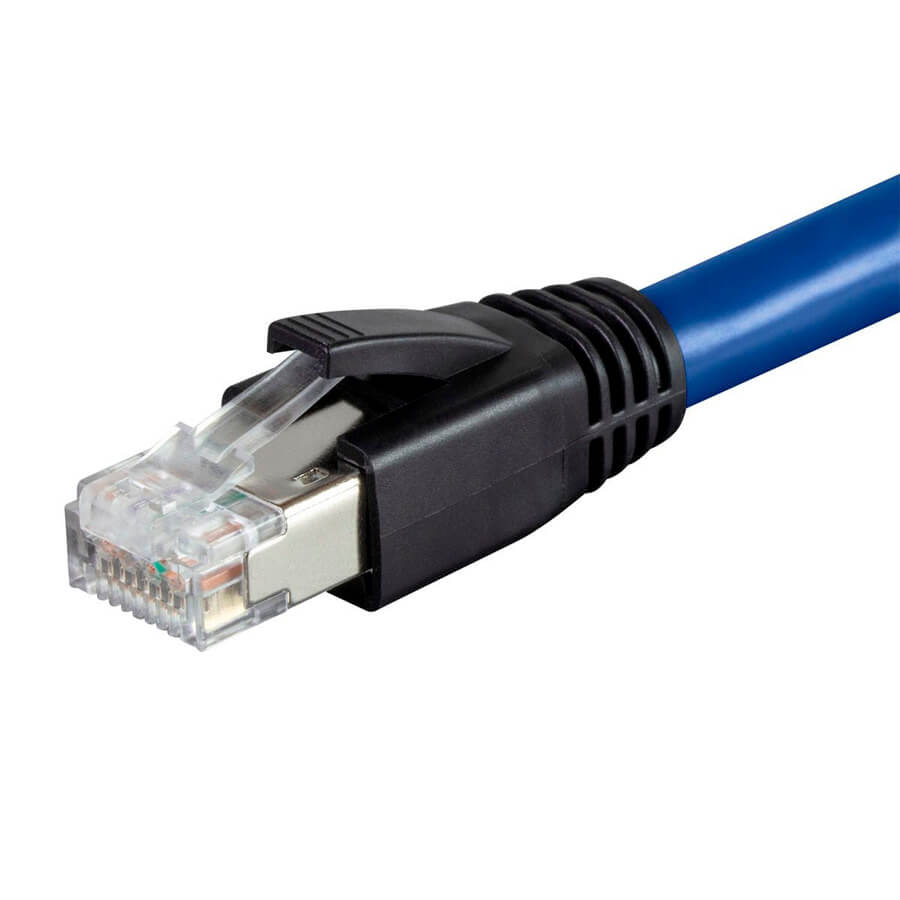

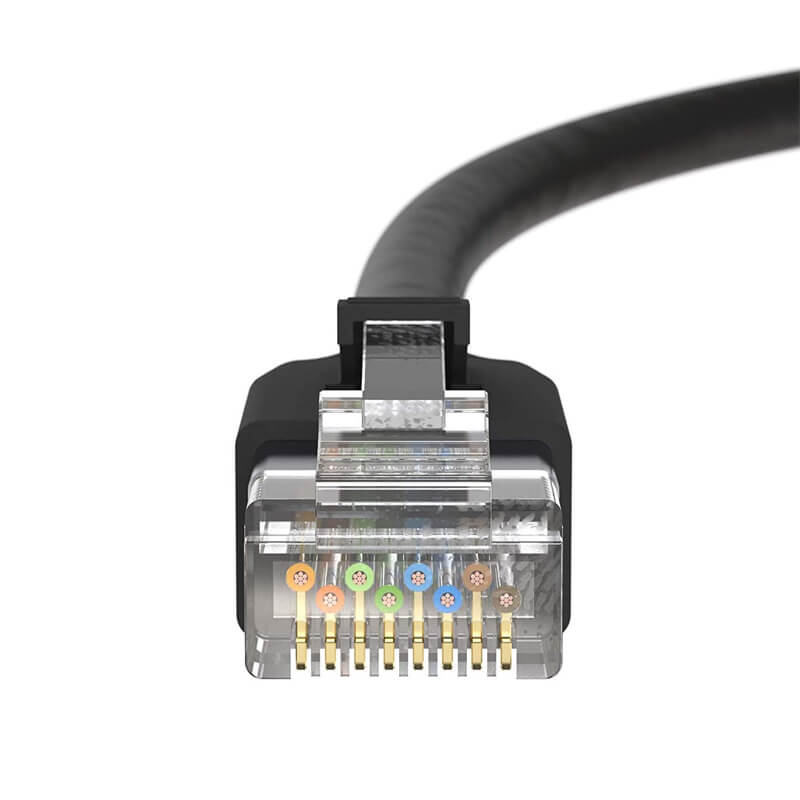

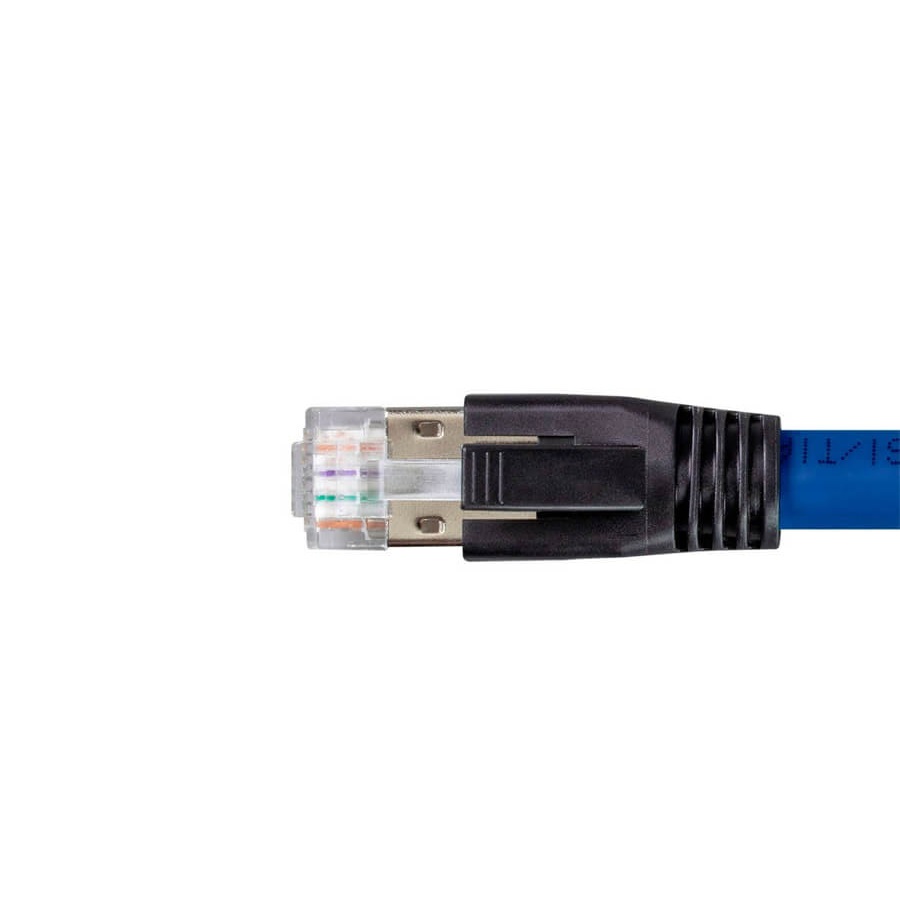

* Connector 1: RJ45 Cat8 FTP

* Connector 1: RJ45 Cat8 FTP

* Contact: Gold plated 50U, Nickel plated shell

* Testing: Fluke tester

* Cat8 S/FTP double fully shielded

* Stranded cable for maximun flexibility.

* Pairs individually shielded with aluminum foil

* Meets or exceeds TIA/EIA -568-C.2 and ISO/IEC 11801 Specification

* Tested to 2000MHz and support 40GBase-T Gigabit Ethernet

* Ideal for Data center architectural requirments

* Available with different color of cable

* Available with different length

* ROHS, REACH Compliant
