Cat6A SFTP LAN Cable

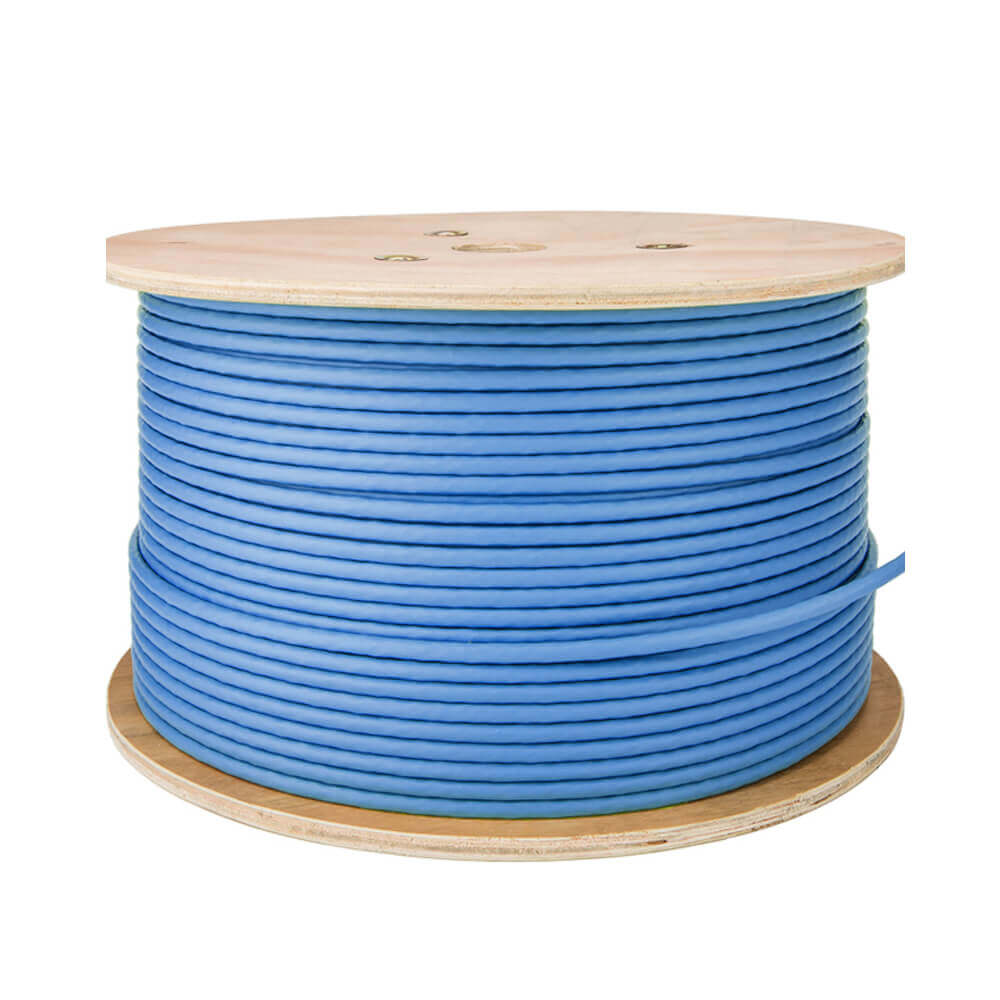

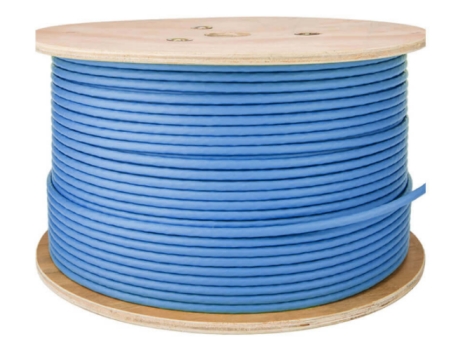

LinkTop Cat6A SFTP ethernet cable outdoor indoor Cat 6a lan cable 305m 1000ft cable roll box

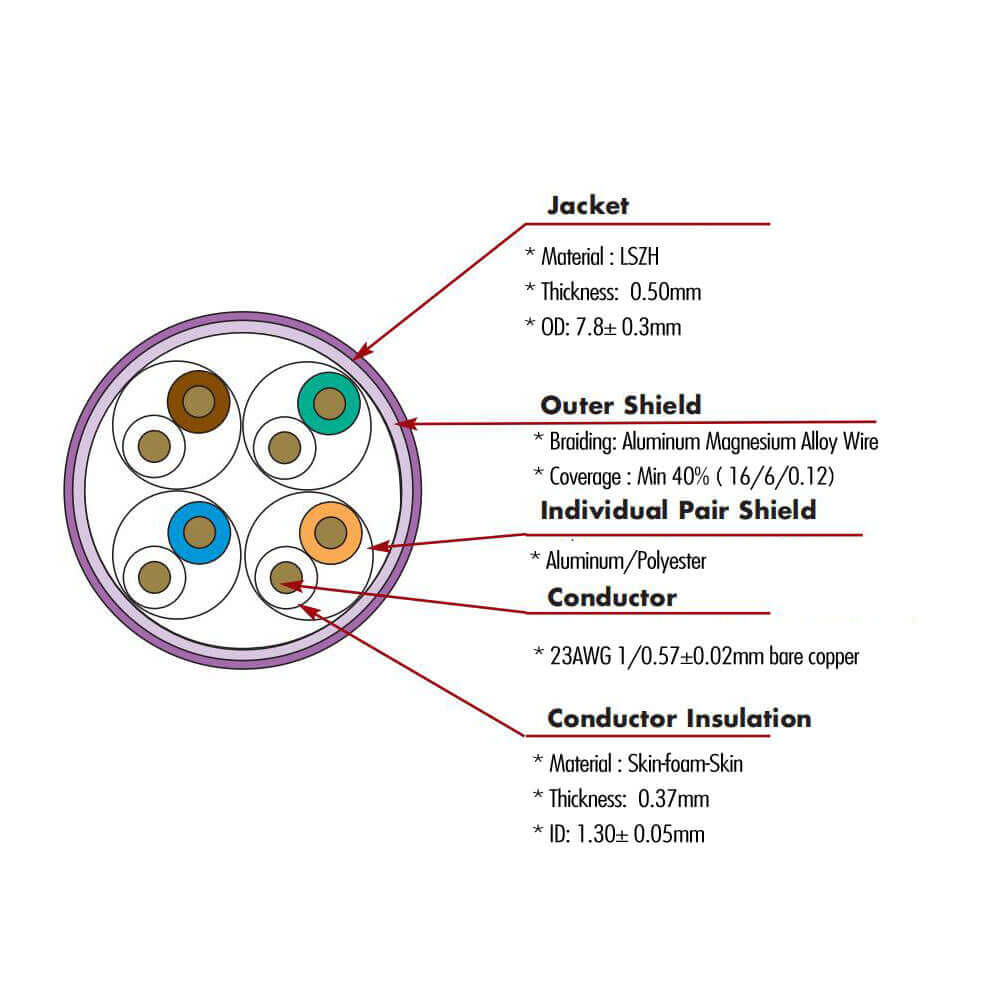

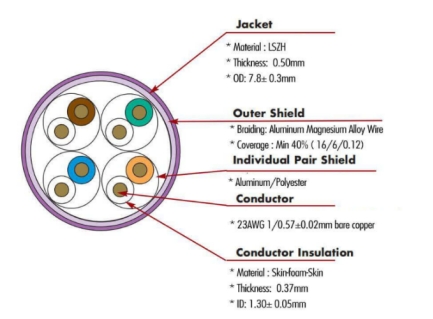

LinkTop CAT6A S/FTP Shielded and Foiled Ethernet installation cable, is ideal for for high performance data communications for voice, data, video and security capabilities. This cable enables 10-Gigabit data transmission and allows for faster bandwidth up to 500MHz.Composed of four individually shielded pairs of 23 gauge solid bare copper conductors, with an overall Aluminum Magnesium Alloy braid shield, in order to repel electromagnetic interference (EMI) in electrically noisy environments, the CAT6A bulk Ethernet cable has an overall LSZH jacket and sequential foot or meter markings on the jacket so you always know how much it left.

Specifications:

* Conductor : 23AWG (1/0.57mm), Solid Oxygen-free Copper

* Insulation: Foam skin PE

* Shielding: Individual pair shielding by aluminum foil

* Braiding: 16/6/0.12 AL-MG

* Outer Diameter: 7.8 ± 0.2mm

* Jacket Options: PVC, LSZH, CM, CMR(Riser), CMP(Plenum), PE (Outdoor),

* Color: Grey/White/Blue/Black or Customized

* Tested by Fluke and Network analyser

* ROHS, REACH Compliance

* CPR Eca, Dca Certificated

Standard Compliance

* IEC/ISO 11801

* ISO/IEC 61156-5

* ANSI/TIA568C.2
