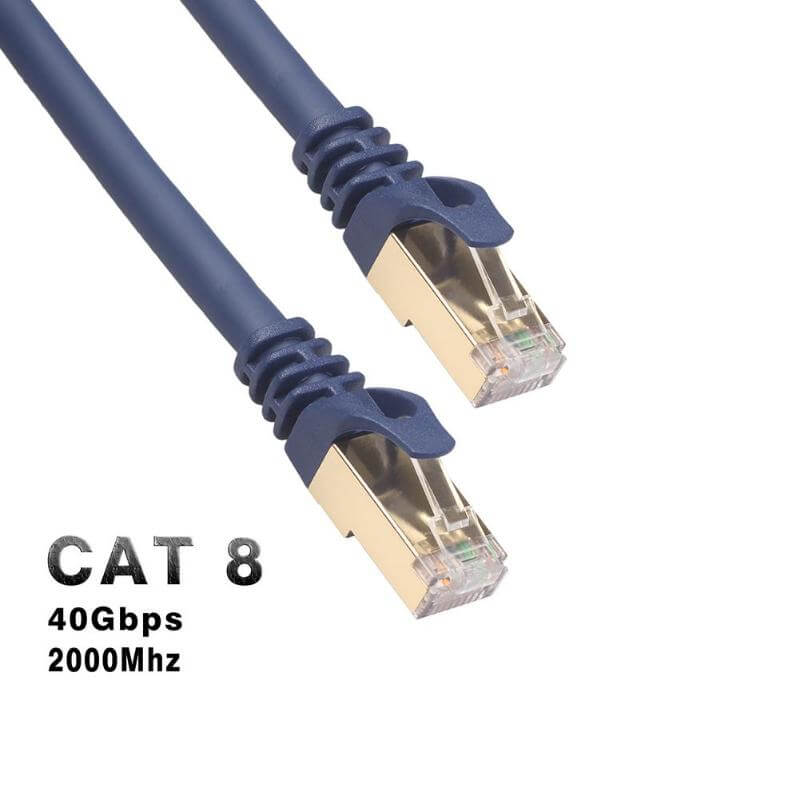

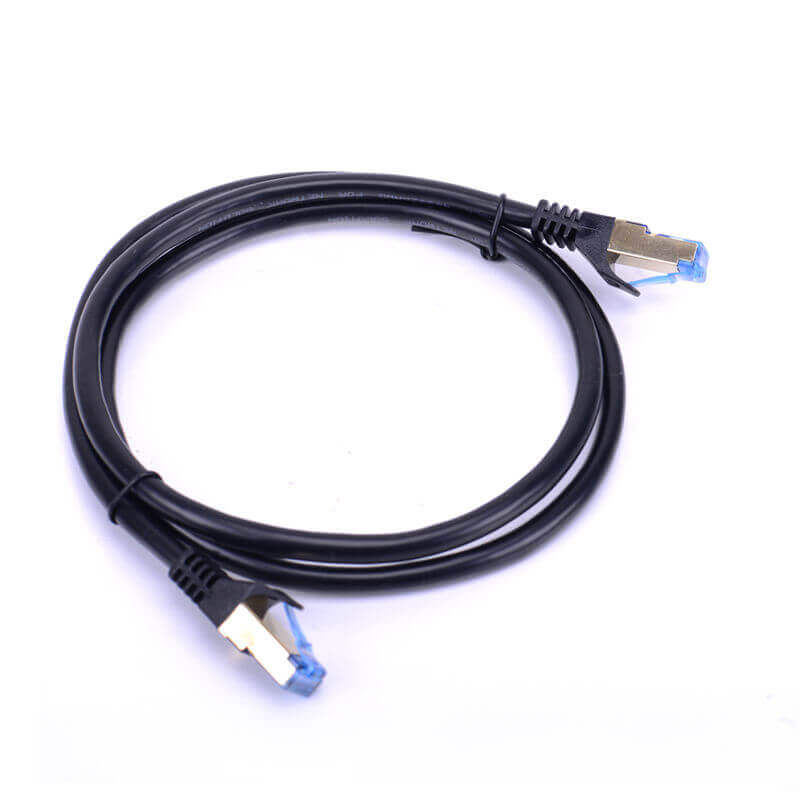

Cat.8 SSTP 26AWG Patch Cord

LinkTop Cat 8 high quality SSTP/SFTP ethernet patch cord cable RJ45 shield Cat8 network cable 26AWG

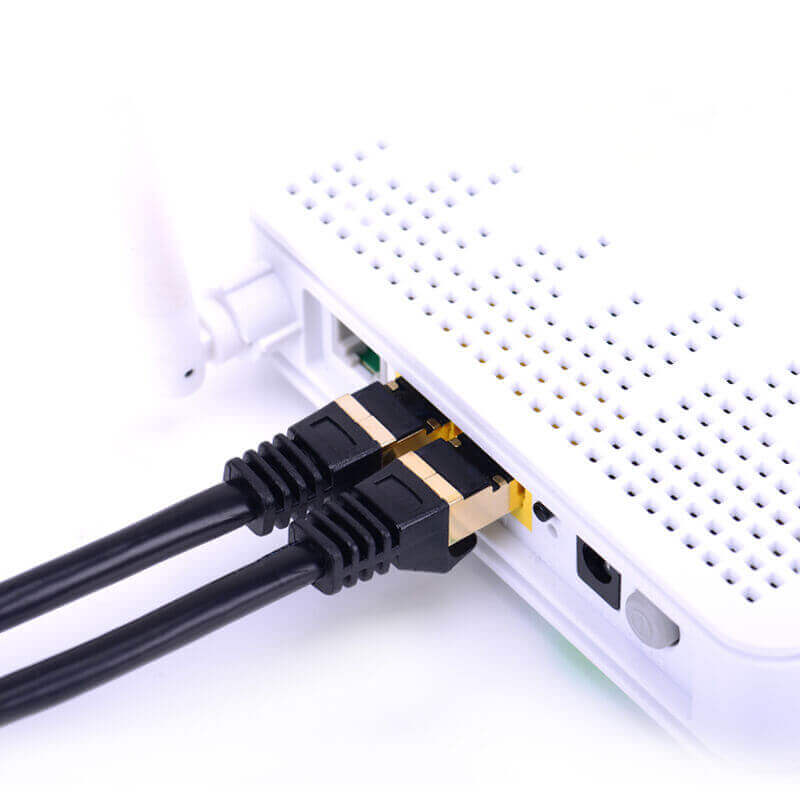

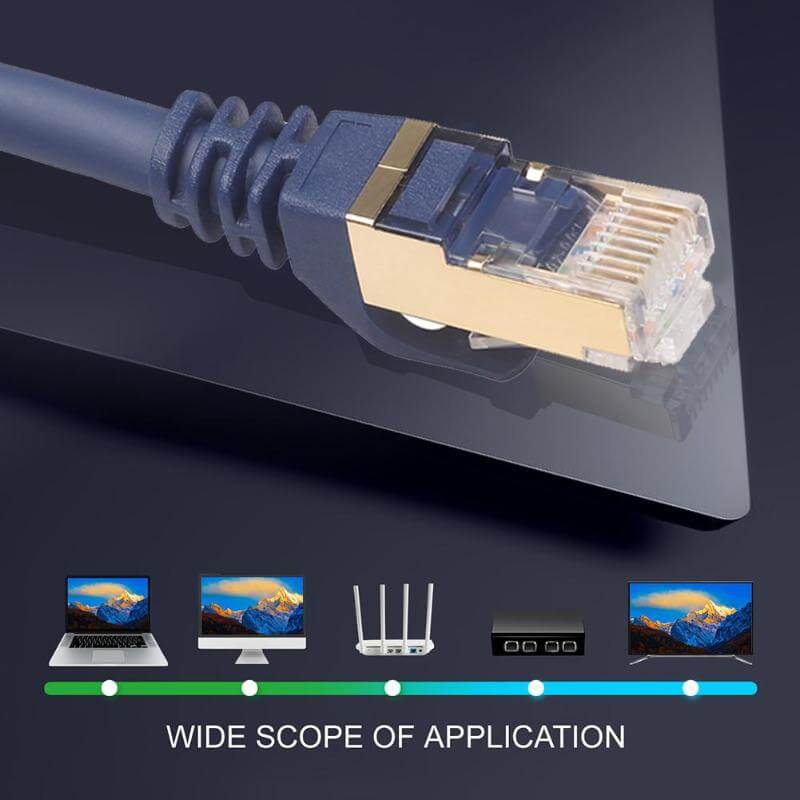

LinkTop Cat8 S/FTP Double Fully Shielded Patch Cable is an ideal solution for making a network connecting in a noisy, EMI/RFI environment. Build your home or office network with 10GBase-T Gigabit Ethernet. The S/FTP Double Fully shielding provides protection from EMI/RFI noise and electromagnetic interference makes a well Attenuation and Crosstalk performance. This cable meets or exceeds Category 8 performance in compliance with the TIA/EIA-568-C.2 specifications. The connectors with gold-plated contacts, molded strain-relief boots, and snagless molds resist corrosion, provide durability, and ensure a secure connection. Bare copper conductors enhance cable performance and comply with specifications for communications cables. Flexible and durable Cat8 cable with high bandwidth of up to 2000MHz guarantees high-speed data transfer for server applications, cloud computing, video surveillance, and online high-definition video streaming.

Specifications:

*Conductor : Bare copper

*Wire Gague: 26AWG 7/0.16 ±0.015mm

*Insulation: Foam PE

*Insulation color: Blue/White,Blue; Orange/White, Orange; Green/White,Green; Brown/White,Brown

*Individually shield: Aluminum foil

*Braiding: Braid 16/5/0.12 Aluminum Magnesium

*Drain wire: 26AWG 7/0.16 ±0.015mm

*Jacket: PVC *Outer diameter: 602±0.2mm

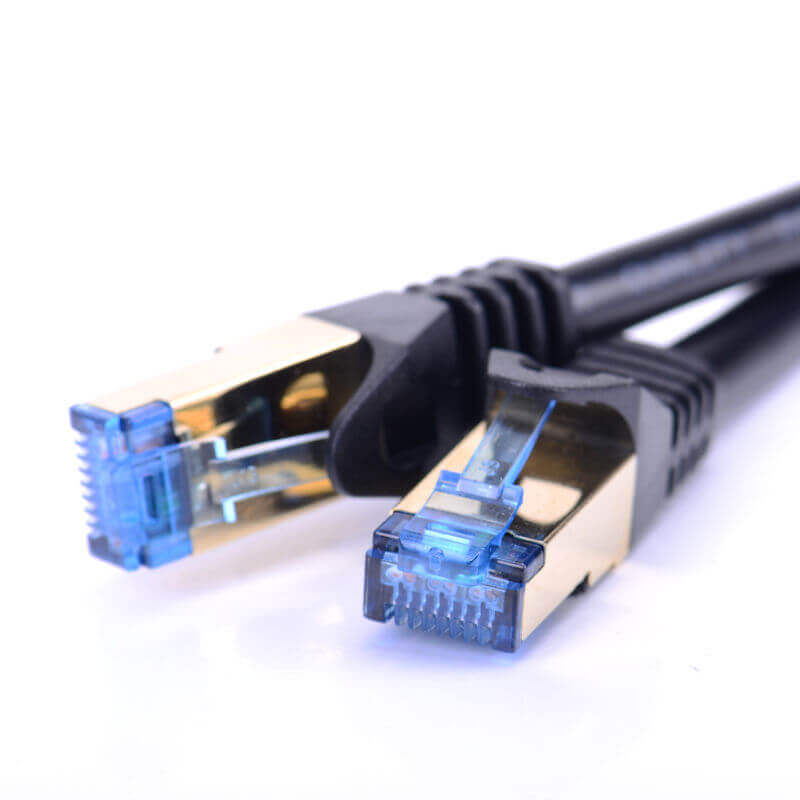

*Connector 1: RJ45 Cat8 FTP

*Connector 1: RJ45 Cat8 FTP

*Contact: Gold plated 50U, Nickel plated shell

*Testing: Fluke tester

*Cat8 S/FTP double fully shielded

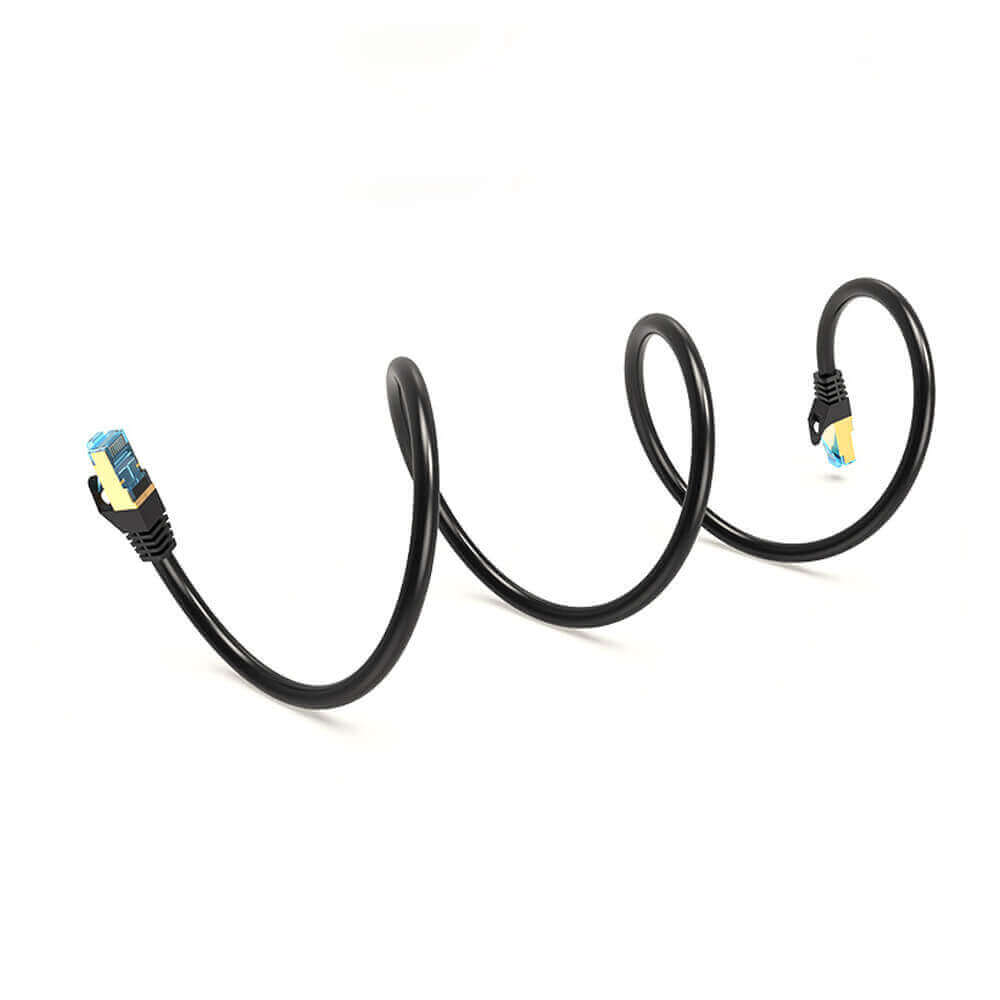

*Stranded cable for maximun flexibility.

*Pairs individually shielded with aluminum foil

*Meets or exceeds TIA/EIA -568-C.2 and ISO/IEC 11801 Specification

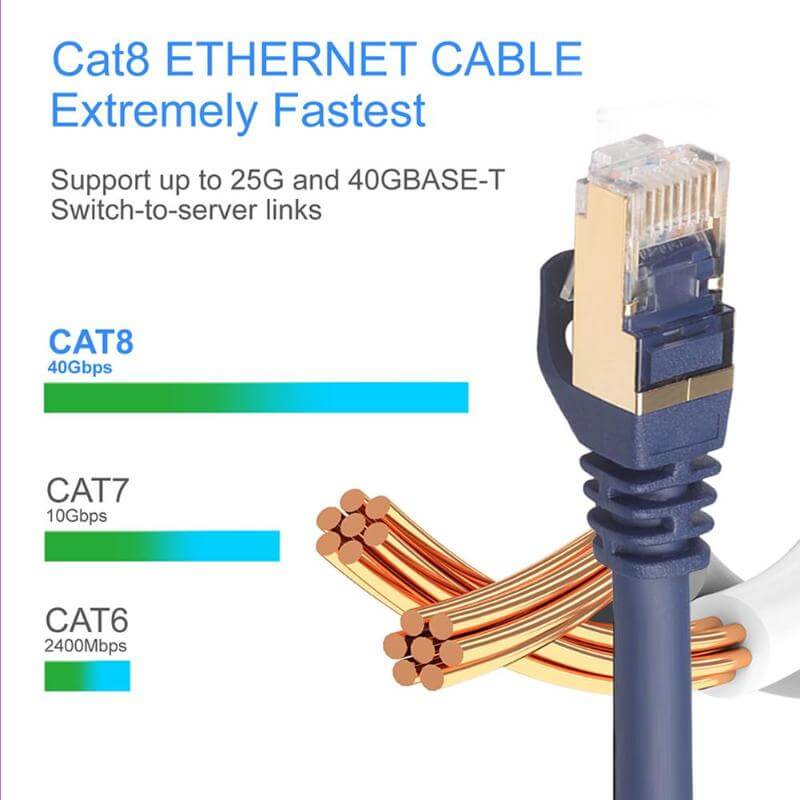

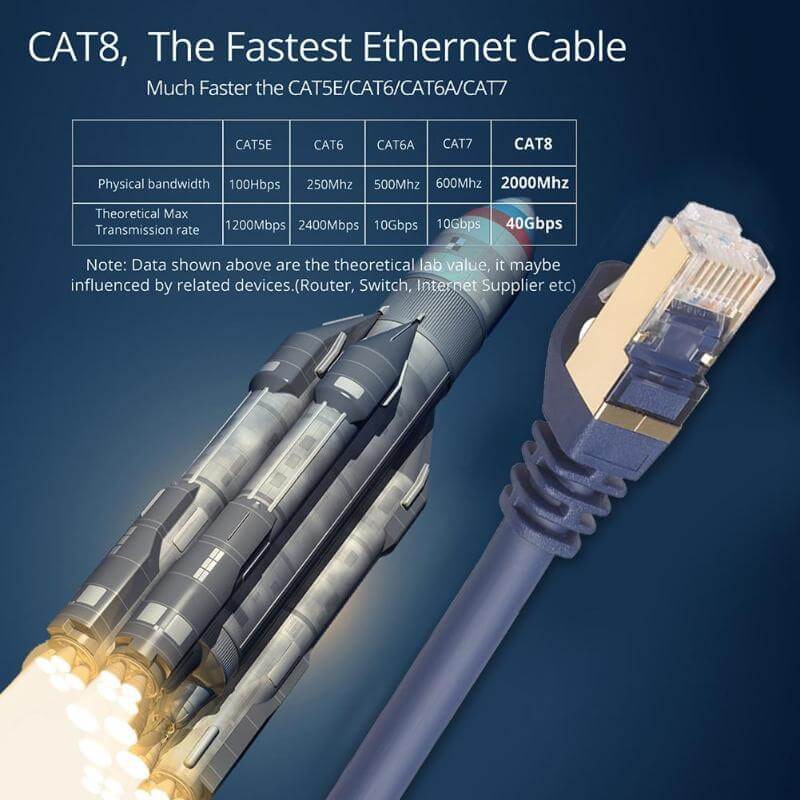

*Tested to 2000MHz and support 40GBase-T Gigabit Ethernet

*Ideal for Data center architectural requirments

*Available with different color of cable

*Available with different length

*ROHS, REACH Compliant
